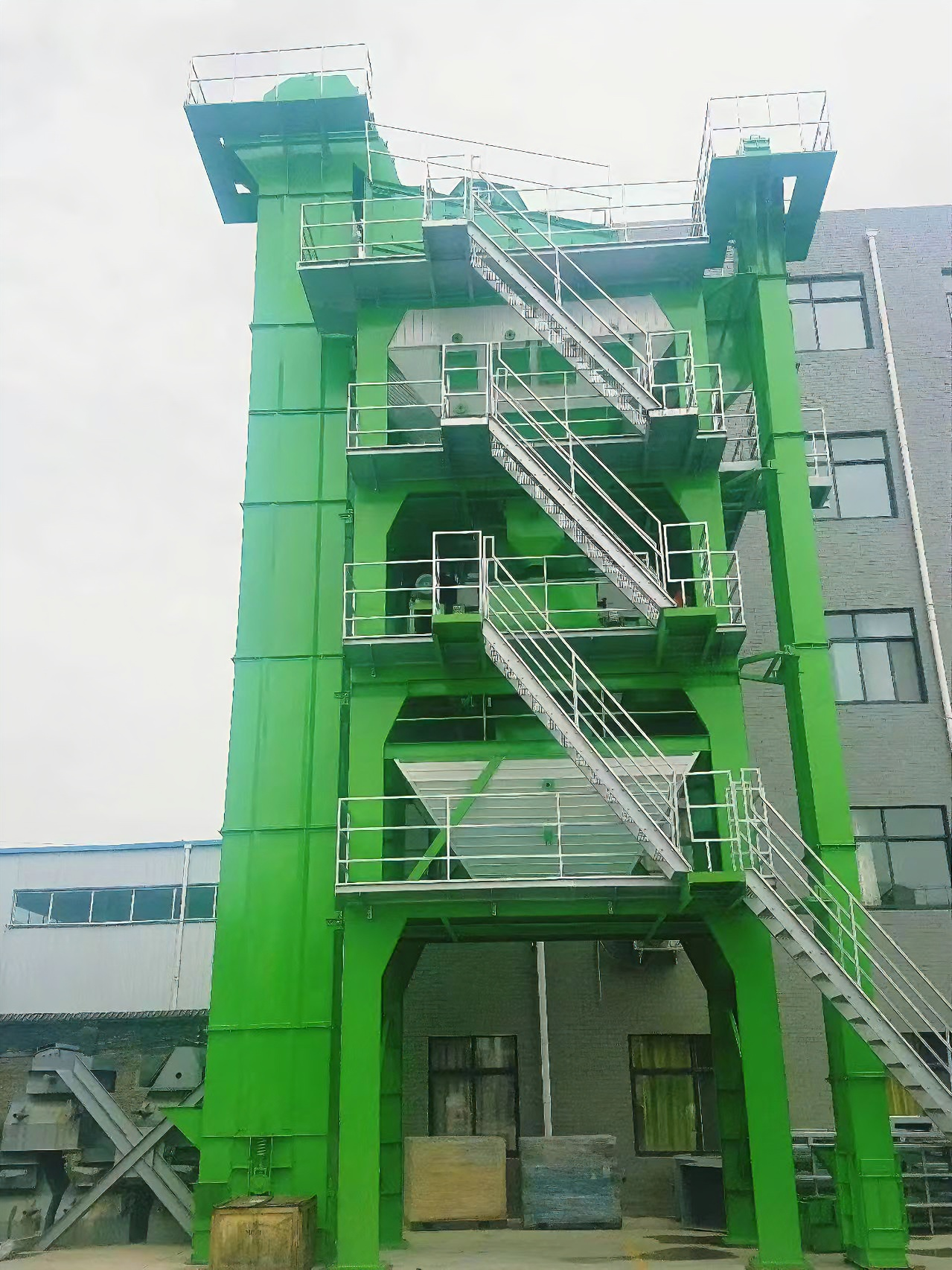

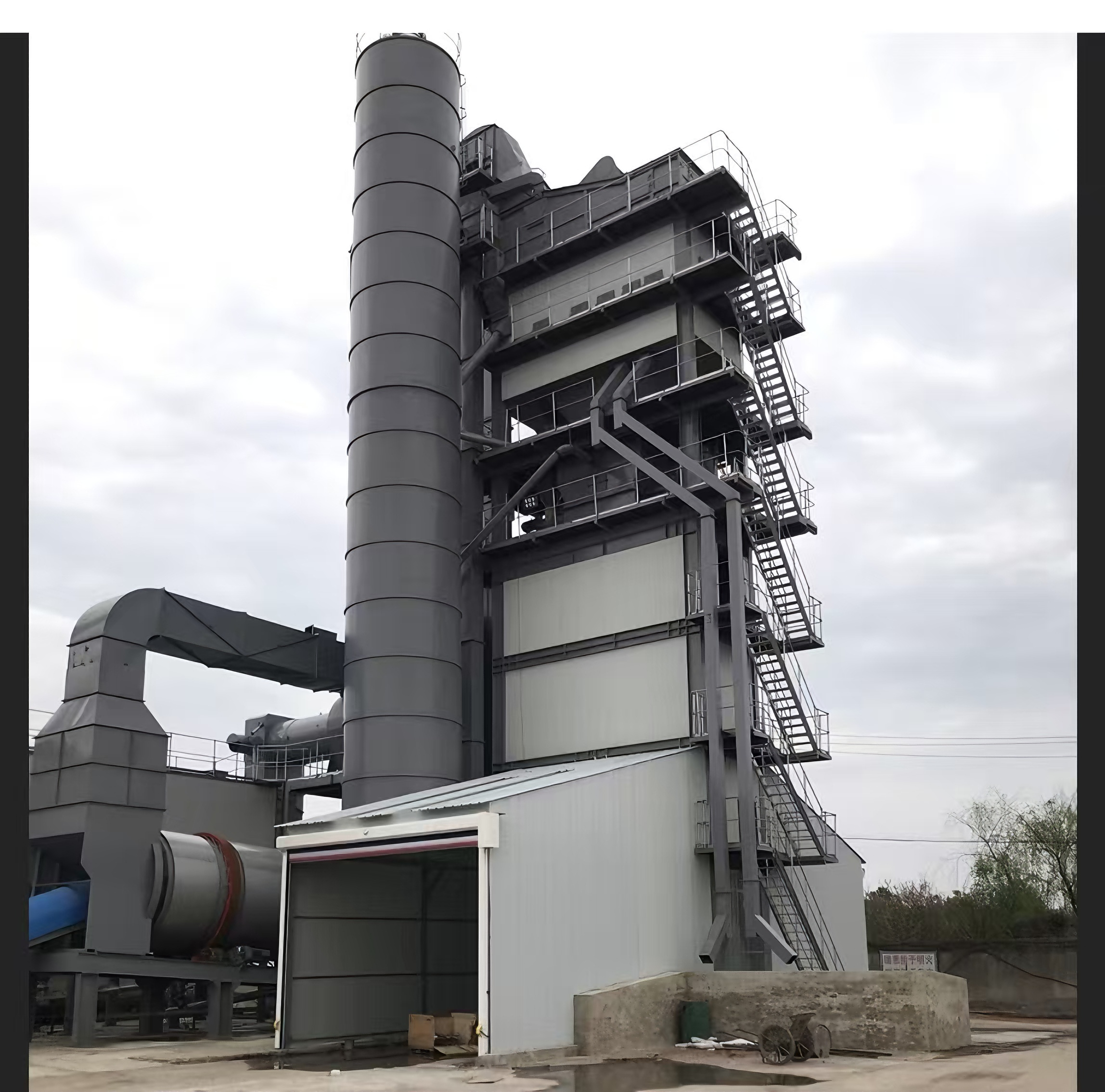

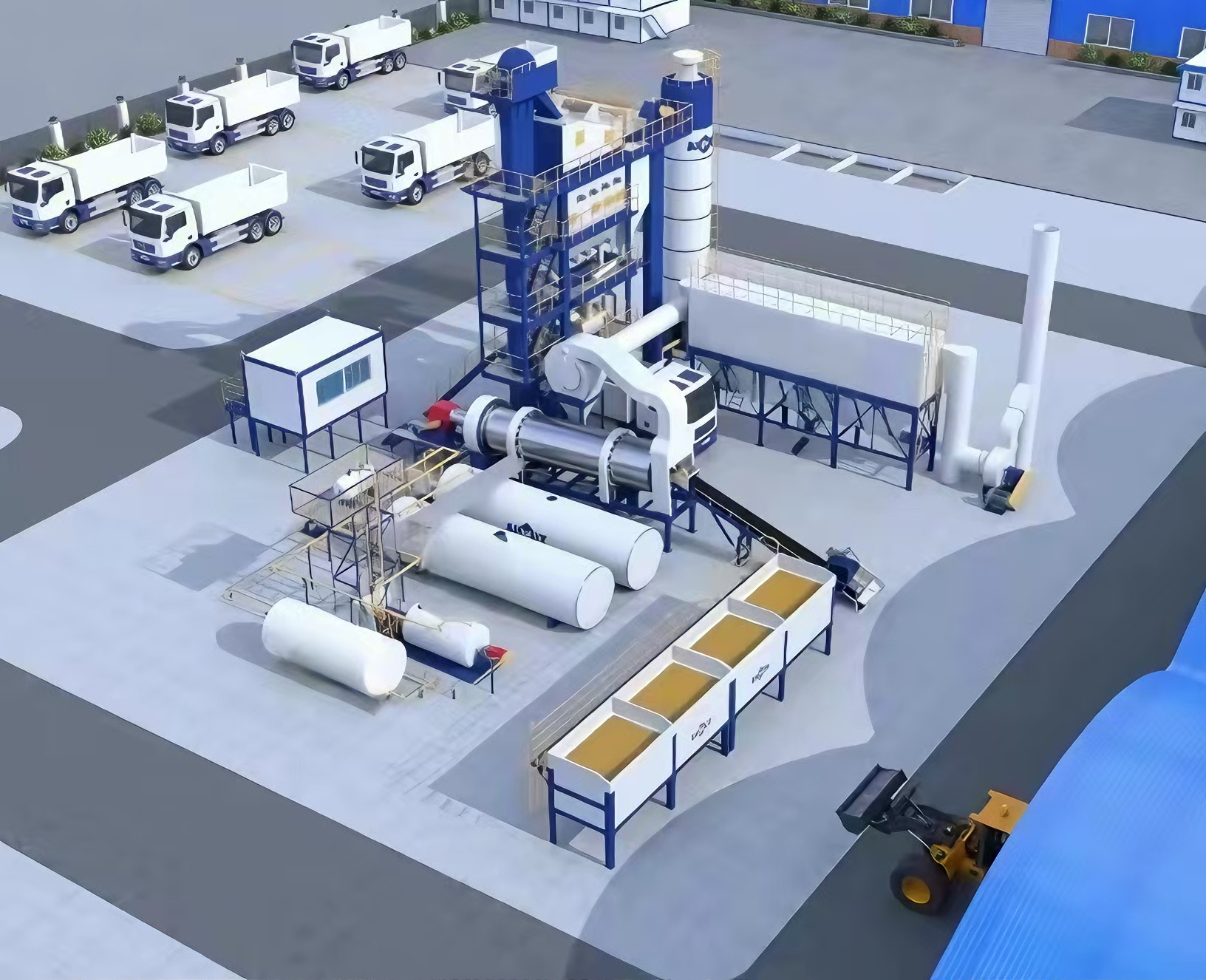

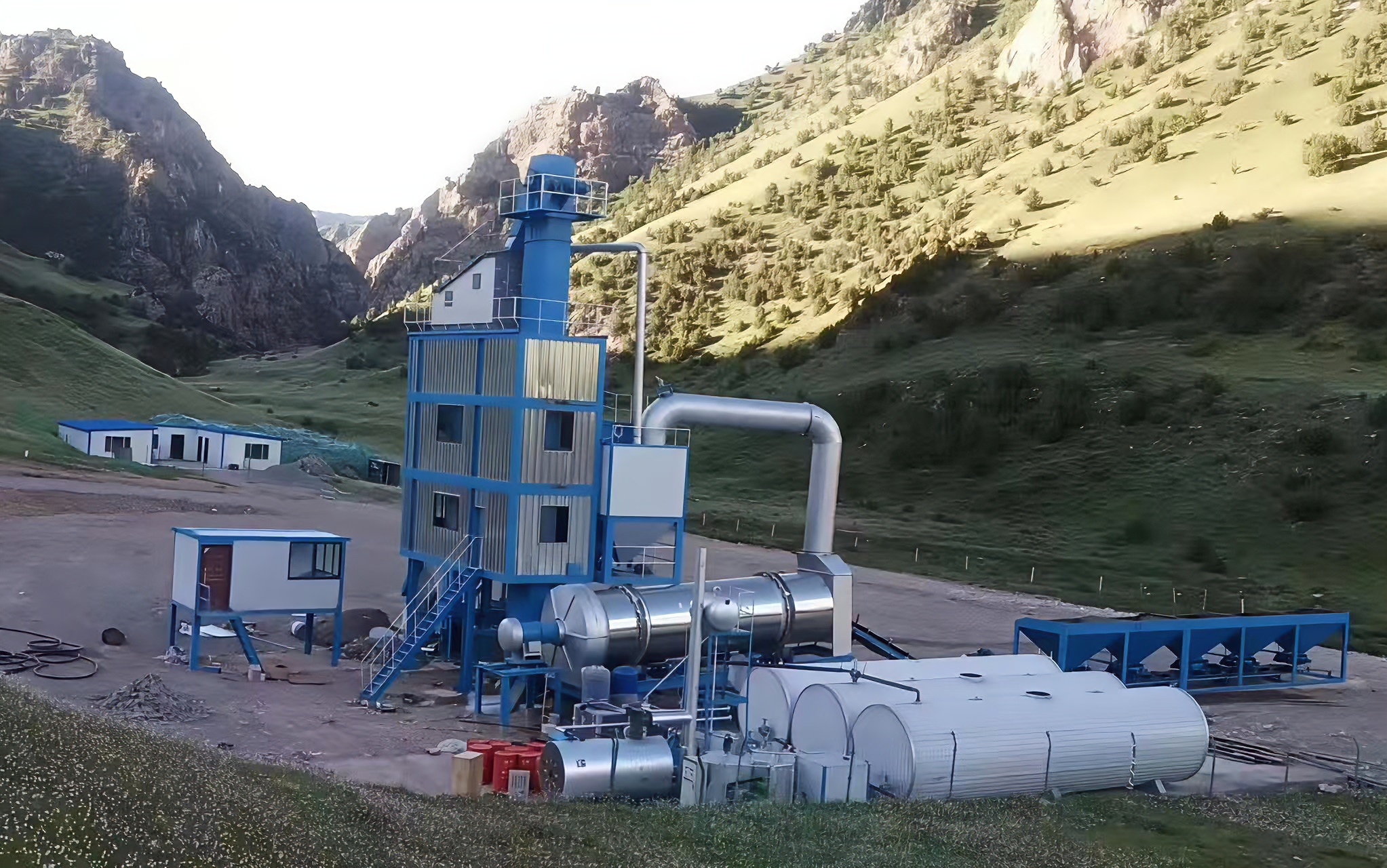

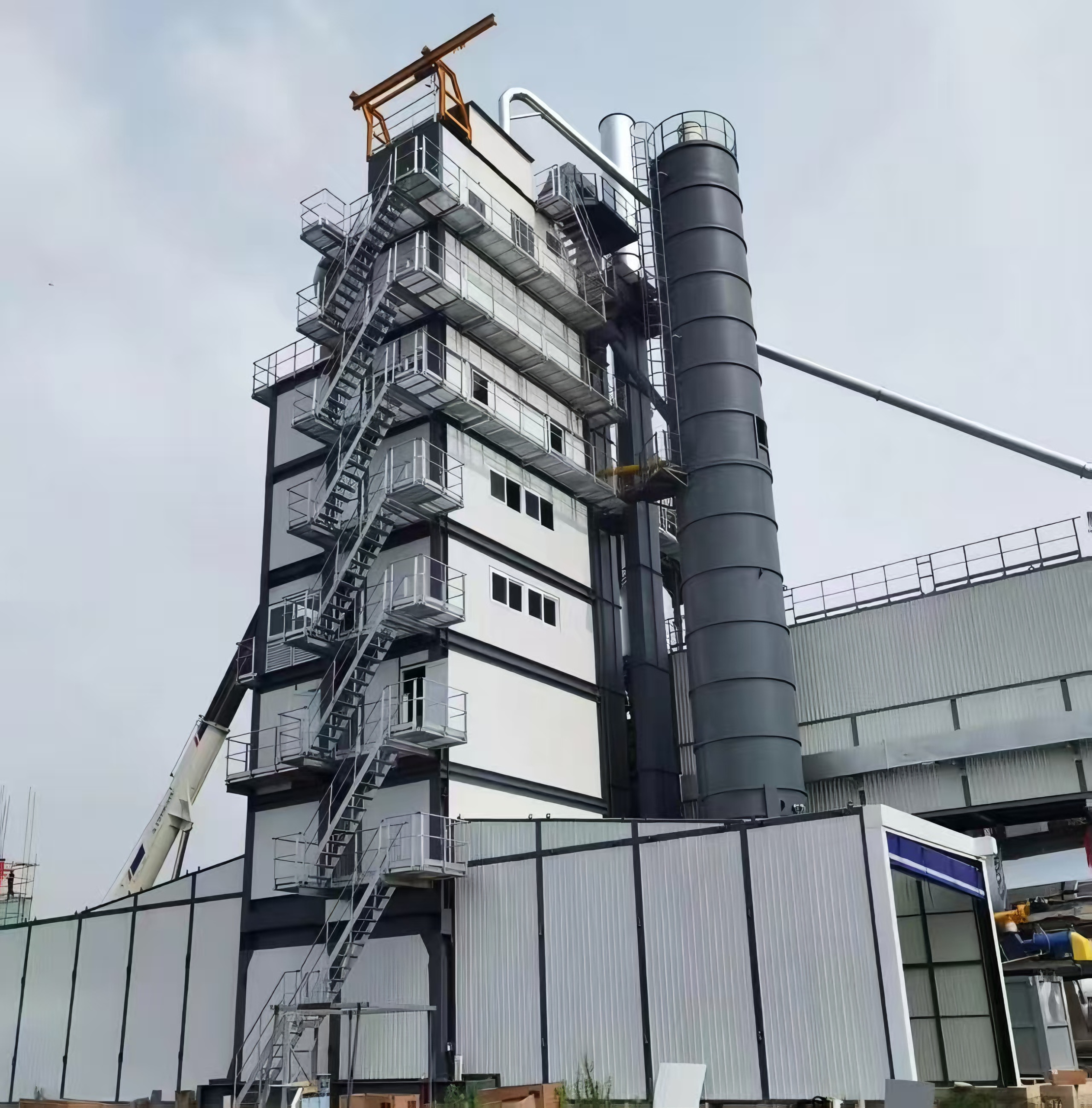

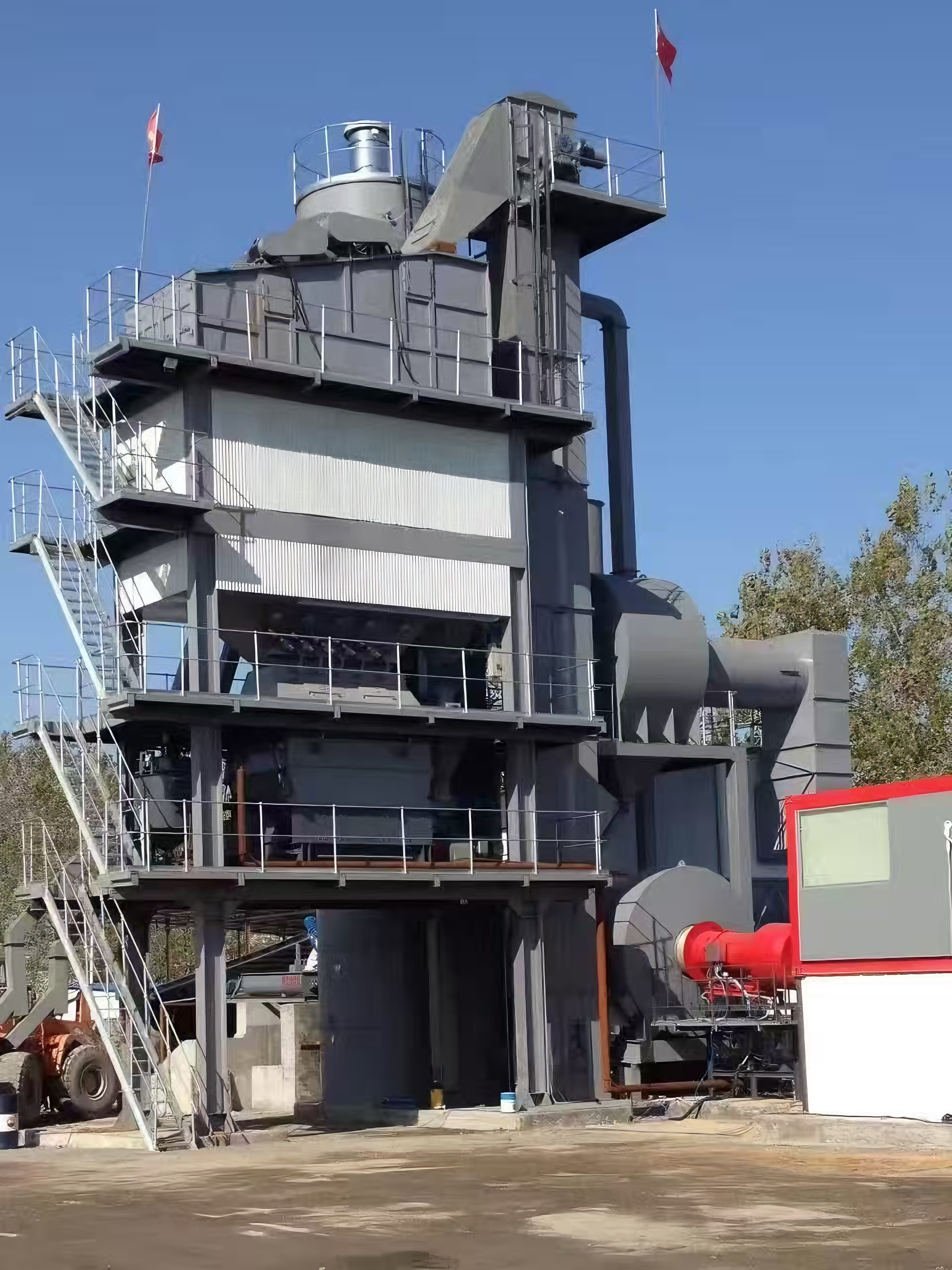

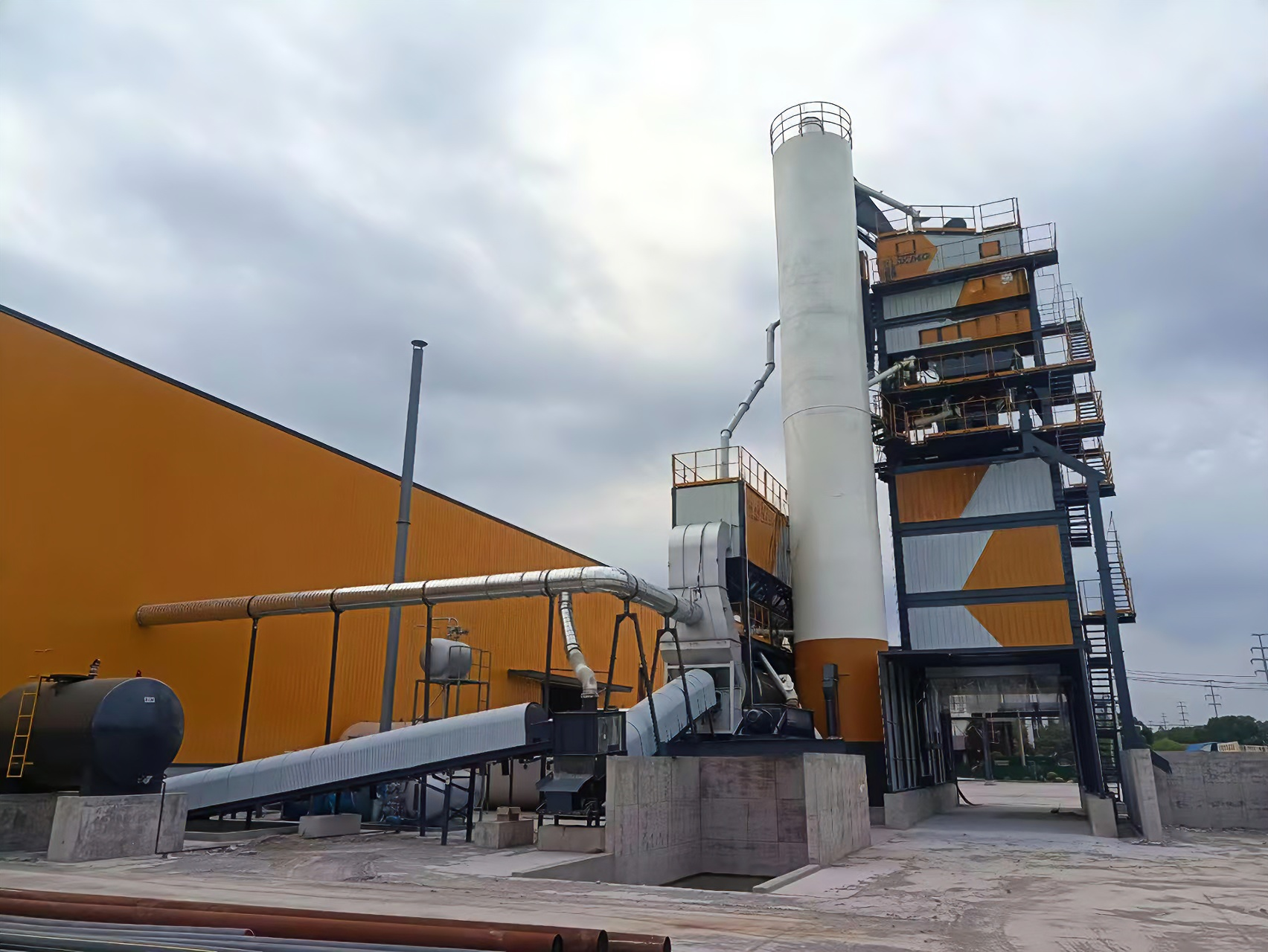

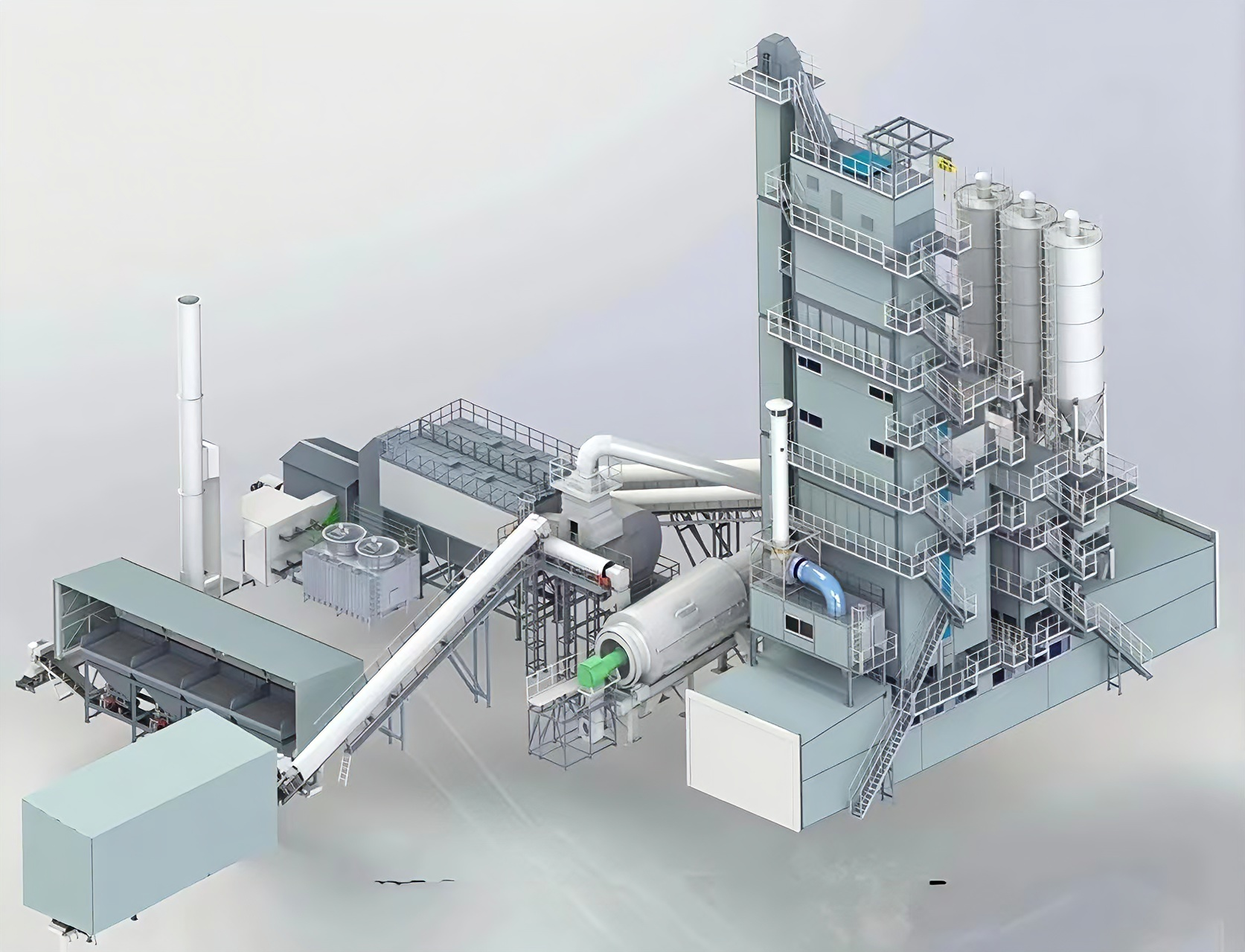

Eco-friendly Asphalt Mixing Plant

Capacity:80~400t/h
MixerCapacity:1000~5000kg
Bitumen Aggregate Ratio: 3%-9%
Mineral Powder Proportion:4%-12%



Inquiry Us

Advantages & Features



  1. Low Emission & Strong Dust Control

    Equipped with multi-stage dust removal systems (e.g., baghouse dust collectors + wet scrubbers), the dust emission concentration is ≤10mg/Nm³, far below environmental standards. It also adopts low-nitrogen burners to reduce NOₓ emissions by 30%-50% compared to traditional models.

  2. Energy Conservation & High Efficiency

    Uses waste heat recovery technology (recycles flue gas heat to preheat cold aggregates), cutting fuel consumption by 15%-20%. The intelligent frequency conversion control of motors reduces electricity consumption by ~10%.

  3. Low Noise Pollution

    Key components (e.g., mixers, fans) are installed with sound insulation enclosures and vibration-damping pads, reducing operating noise to ≤75dB (A) at 1m distance, meeting urban construction noise limits.

  4. Waste Recycling Capability

    Supports recycling of 10%-30% reclaimed asphalt pavement (RAP) materials, with dedicated RAP feeding, heating, and mixing modules to ensure recycled mixtures meet quality requirements.

  5. Intelligent Environmental Monitoring

    Integrated with real-time monitoring systems for dust, noise, and exhaust gas, which automatically alarms and adjusts operations when indicators exceed limits; data can be synchronized to environmental supervision platforms.



Application areas



  1. Urban Road Construction & Maintenance

    Suitable for urban main roads, residential area roads, and sidewalks (complies with strict urban environmental protection requirements).

  2. Highway & Expressway Projects

    Meets the high-quality requirements of high-grade roads while reducing environmental impact in sensitive areas (e.g., near villages, nature reserves).

  3. Municipal Infrastructure Projects

    Applied in airport runways, port access roads, and large parking lots (especially in areas with strict environmental regulations).

  4. Eco-Sensitive Area Construction

    Used in projects near scenic spots, water sources, or ecological reserves (low emission meets environmental protection access standards).

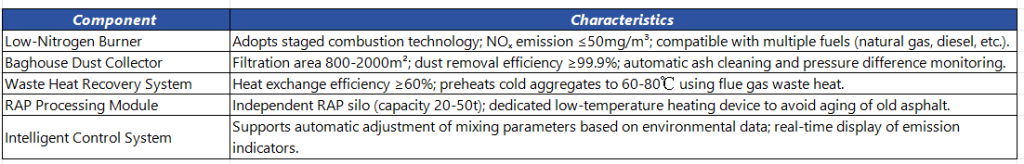

Key Component Characteristics

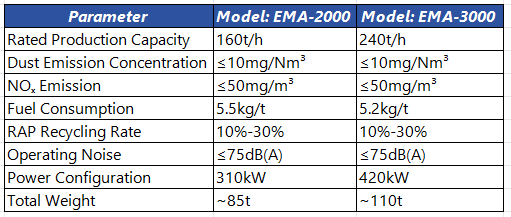

Technical Parameters
